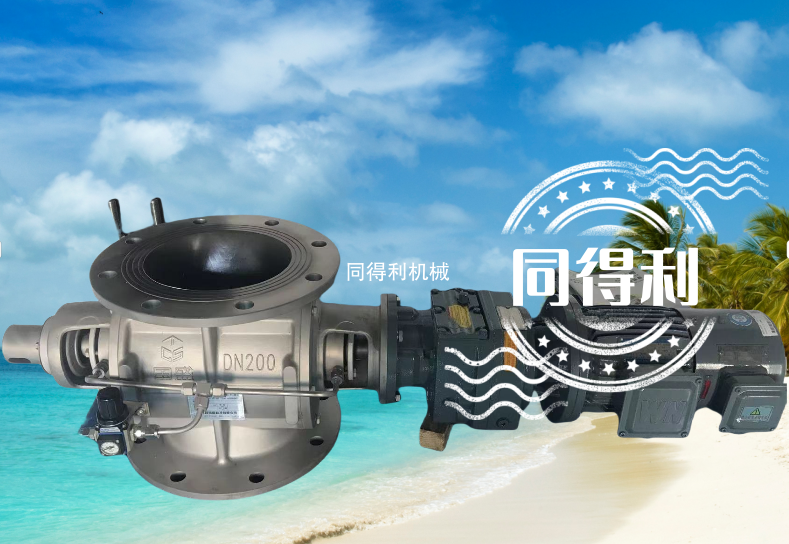

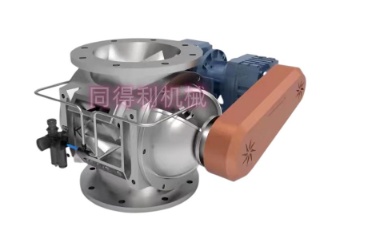

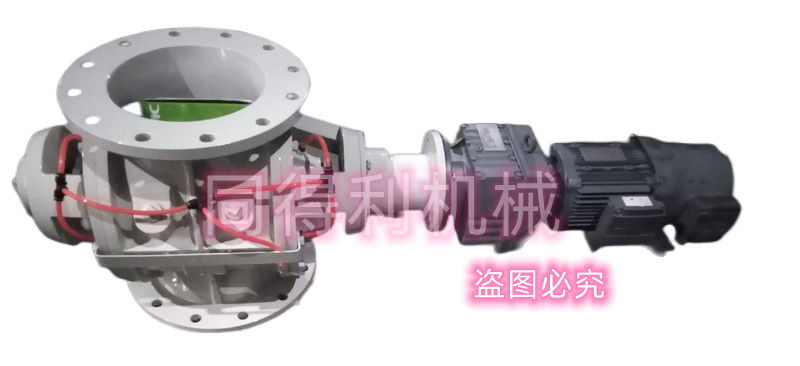

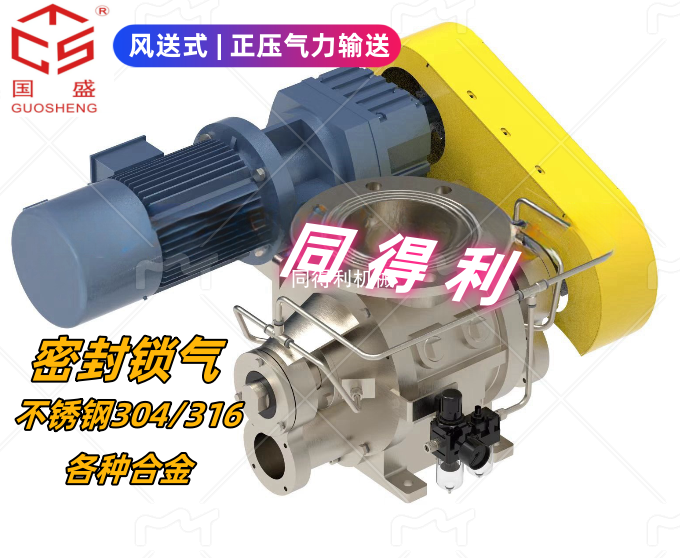

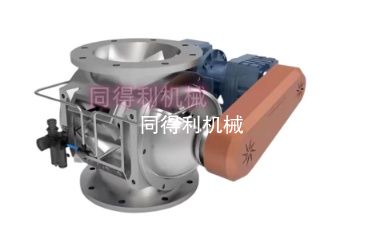

星型旋轉閥常用在氣力輸出系統中。對于壓力輸出系統或負壓輸出系統，星型旋轉閥可以均勻、連續地向輸料管供料，以保證氣力輸出管內的氣、固態比較穩定，從而使氣力輸送能正常工作，同時又能將旋轉閥的上、下部氣壓隔斷而起到鎖氣作用。因此，星型旋轉閥是氣力輸送系統中常用的重要設備?！　tar shaped rotary valves are commonly used in pneumatic output systems. For pressure output systems or negative pressure output systems, star shaped rotary valves can uniformly and continuously supply material to the conveying pipe to ensure that the gas and solid in the pneumatic output pipe are relatively stable, so that the pneumatic conveying can work normally. At the same time, they can also block the upper and lower air pressure of the rotary valve and play a role in air locking. Therefore, the star shaped rotary valve is an important equipment commonly used in pneumatic conveying systems.　　正壓稀相輸送的介質一般采用空氣或氮?dú)?，?dòng)力提供一般由羅茨鼓風機提供，氮?dú)廨斔蜁r(shí)則有制氮機進行提供。羅茨鼓風機的稀相輸送時，物料在管道中呈懸浮狀態，輸送距離可以達百米，氣流速度較高。　　由于系統處于正壓，所以密封性要求很高，若有一絲泄漏就會造成供料端或者整個系統的粉塵外溢;系統物料采用吹送式?！倦娫?微信咨詢：陳經理18068546632】　　風送式旋轉閥：　　針對物料粘接，風力直吹轉子清理物料。　　主要材質：碳鋼、不銹鋼304-316、鈦合金、鋁合金、各種合金、陶瓷、尼龍系列等?！　饷芊庋b置：高精度密封鎖氣，防止物料在輸送過程中的泄漏，?確保系統的正常運行。?【電話/微信咨詢：陳經理18068546632】　　軸承外置式：有效的防止粉塵侵入軸承，增大設備適應較高溫度的使用范圍?！　◎?qū)動方式：鏈驅動/馬達直連驅動口?！　?dòng)力配置：擺線針輪減速機、Y系列電機(可按客戶指定動力配置)。【電話/微信咨詢：陳經理18068546632】　　常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等。           【電話/微信咨詢：陳經理18068546632】      《掃二維碼-添加 陳經理 微信-咨詢正負壓輸送旋轉閥》　　部分客戶需求：　　1、替代意大利威埃姆，物料：動物飼料里面的預混料，閥體材質：不銹鋼304;閥板材質：不銹鋼304;帶瓜片;轉速：20rpm/min;功率0.75kw，非防爆電機，380V,50Hz;硬齒面減速電機,IE3能效等級電機;帶軸承端蓋保護;CE認證?！　?、旋轉給料閥：DN150.物料名稱：抗氧劑，物料堆積密度：400~600kg/m3.工況：氣力輸送,工作溫度：50°C,與物料接觸材質CF8/SS304.輸送能力0.3~0.35T/h,主體結構：開式葉輪,軸氣封,軸承外置,背包式,容積效率:45%,葉輪轉速18rpm?！　?、火力發電廠在省煤器出口、SCR脫硝入口段，抽取部分煙氣進行高溫?zé)煔獾某龎m。輸灰用羅茨風機、工頻旋轉給料閥，現場除塵裝置已配置收灰的儲灰罐，需要在儲灰緩沖罐下加裝正壓稀相氣力輸送系統。煙氣溫度：在300∽400℃范圍內;輸送介質：煙氣中的粉煤灰;輸送能力：輸送容積0.7∽2m3/h，按不小于2m3/h設計選型;輸送粉煤灰的重量約1600kg/h?！倦娫?微信咨詢：陳經理18068546632】　　4、物料：飼料顆料，正壓輸送，500公斤/小時，變頻，鎖氣功能，出口到國外需要CE認證?！　?、物料：生物質顆粒，直徑5mm、長度40mm以下，正壓氣力輸送，50kg/h?！　?、水硫酸鋁粉末定量穩定輸送，每小時60公斤左右，微正壓，無氧無水環境要求能通過DCS自動控制?！　?、物料：板材行業的砂光粉，配羅茨風機用，正壓輸送，進口360*280高400.每小時2立方?！　?、物料：輸送催化劑，正壓氣力輸送，6~8噸/小時，溫度在500度左右，配水冷耐高溫型?！　?、粉料，儲料罐小罐輸送到大罐，正壓輸送，每小時輸送量12噸，要?dú)饷芊?，防軸兩端漏料?！倦娫?微信咨詢：陳經理18068546632】　　10、化肥助劑粉料，卸料量五百公斤/小時，密度0.8.正壓輸送，變頻，需要鎖氣功能。　　11、物料：鋁粉，正壓輸送，DN200.伺服電機?！　?2、物料：塑料粉塵  正壓輸送 末端除塵器鎖氣卸料用，需求：低泄漏率的鎖氣卸灰閥?！　?3、替代澤普林旋轉閥，物料：糖粉面粉,風送有正壓和負壓，DN150.DN200.DN300.DN500.　　14、物料：草銨膦粉料，正壓6000-9000Pa，密封鎖氣，防堵型DN200.　　15、DN150不銹鋼關風機，正壓輸送食品粉體，旋轉閥需要拋光，配清洗型可以定期清理，側開門式?！倦娫?微信咨詢：陳經理18068546632】　　16、食品粉料，正壓輸送用，食品級旋轉閥，氣密封，要清洗型，輸送量1.5T/h?！　?7、輸送物料：顆粒食用鹽，輸送量 5T/h，快拆式，材質 304.法蘭標準 GB，SEW減速機;設備用途，正壓風力輸送使用;輸送設計壓力：50Kpa?！　he medium for positive pressure dilute phase transportation is generally air or nitrogen, and the power supply is usually provided by a Roots blower. When transporting nitrogen, a nitrogen generator is used. During the dilute phase conveying of Roots blower, the material is suspended in the pipeline, with a conveying distance of up to 100 meters and a high airflow velocity.　　Due to the positive pressure of the system, high sealing requirements are required. Any slight leakage can cause dust to overflow from the feeding end or the entire system; The system materials are blown.　　Pneumatic rotary valve:　　For material bonding, the rotor is blown directly by wind to clean the material.　　Main materials: carbon steel, stainless steel 304-316. titanium alloy, aluminum alloy, various alloys, ceramics, nylon series, etc.　　Airtight sealing device: high-precision sealing and gas locking to prevent material leakage during transportation and ensure the normal operation of the system. ?　　External bearing: effectively prevents dust from entering the bearing and increases the equipment's adaptability to higher temperatures.　　Drive mode: chain drive/motor directly connected to the drive port.　　Power configuration: Cycloid pinwheel reducer, Y series motor (can be configured according to customer's specified power).
